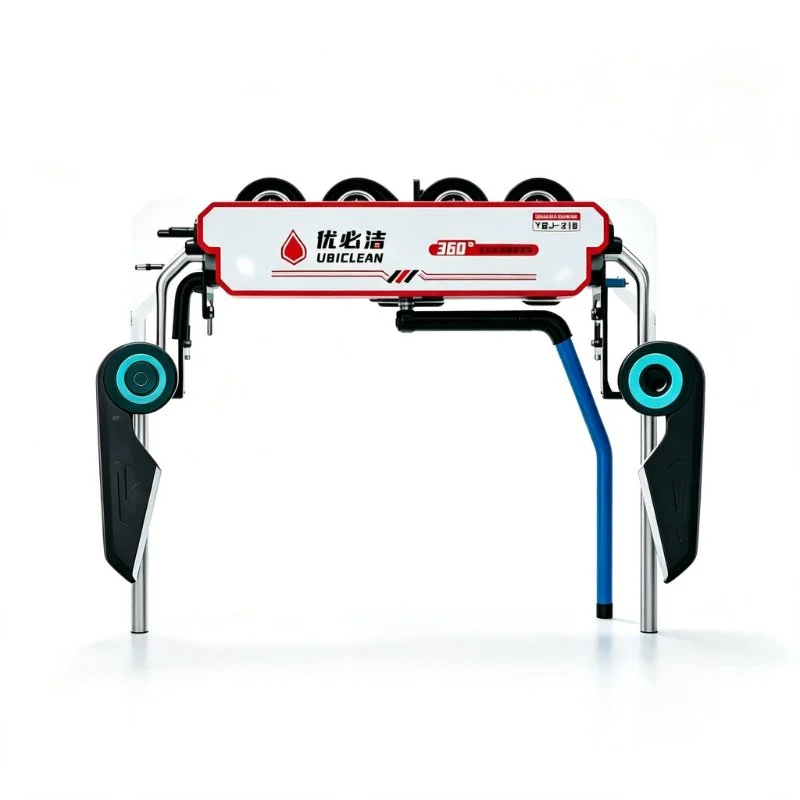

car washing machine, Product
YBJ-818
原价为：¥14,800.00。¥11,400.00当前价格为：¥11,400.00。
|
Control System |
Delta Industrial Control PLC |
| Electrical supporting components |
Schneider Electric Accessories from France |
|
Metering pump |
Brand-new high-precision metering pump |
| Sensor System |
Pepperl+Fuchs (P+F) Ultrasonic Sensing System, Germany |
|
Sensor System |

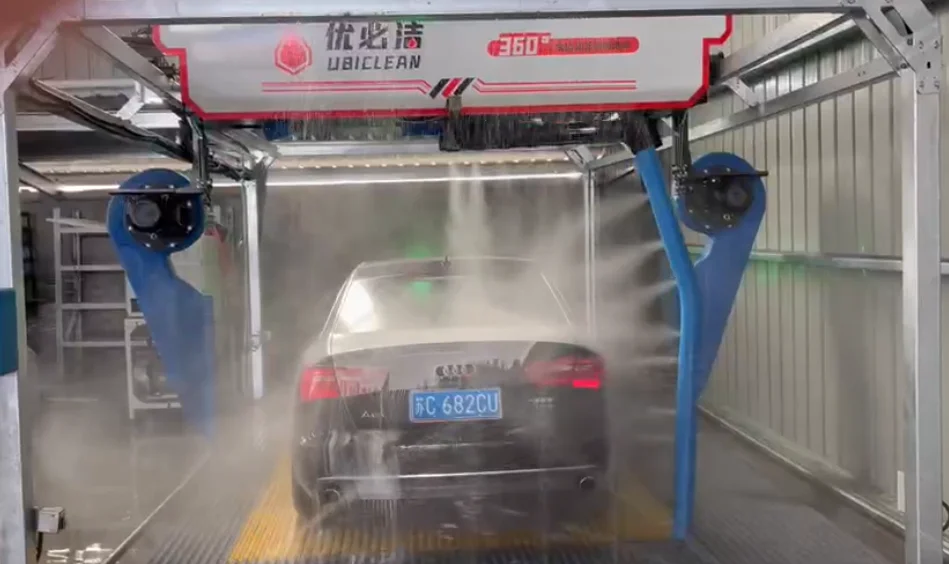

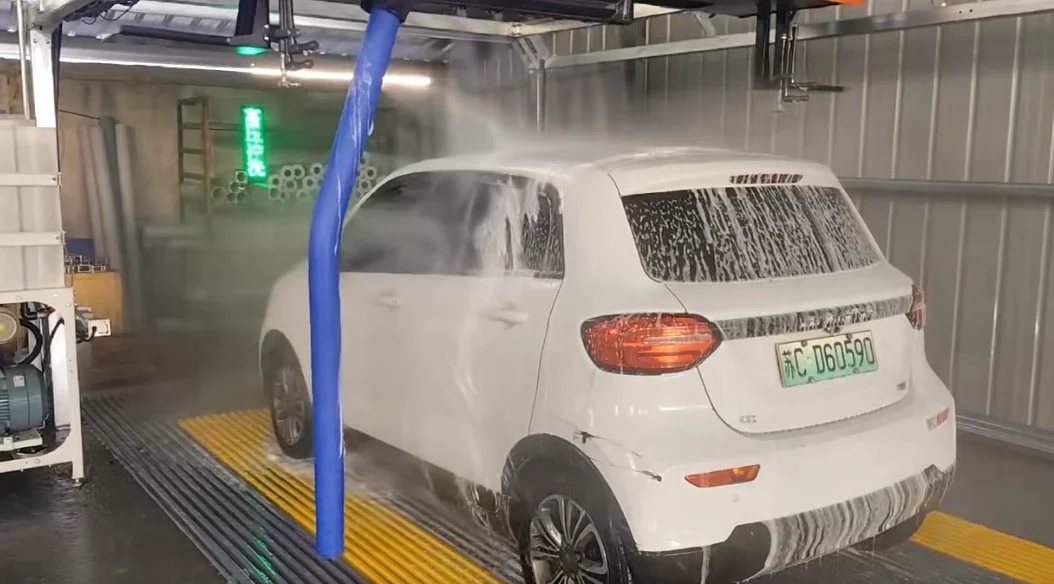

360°surrounding water spray washing for the entire vehicle, with a single washing cycle lasting 50s |
| Consumption of pre-soaking agent |
Approximately 50 mL per vehicle (the actual dosage can be adjusted according to the reagent ratio) |
|
Consumption of polishing car wash shampoo |
Approx. 100 ML per vehicle |
| Consumption of Crystal Coating Wax |
Approx. 40 ML per vehicle |
|
产品名称/型号 Product Name / Model |
YBJ-818-1 | YBJ-818-2 | YBJ-818-3 |
|
市场销售价格 Market selling price |
￥60000 | ￥70000 |
￥80000 |
| ＄8500 | ＄10000 |
＄11400 |
|
|
功 能 配 置 Function Configuration |
|||
|
主机尺寸 Host Size |
2900 mm ×1000 mm ×660 mm | 2900 mm ×1000 mm ×660 mm | 2900 mm ×1000 mm ×660 mm |
| 铁轨长度 Rail track length | 6000 mm | 6000 mm |
6000 mm |
|

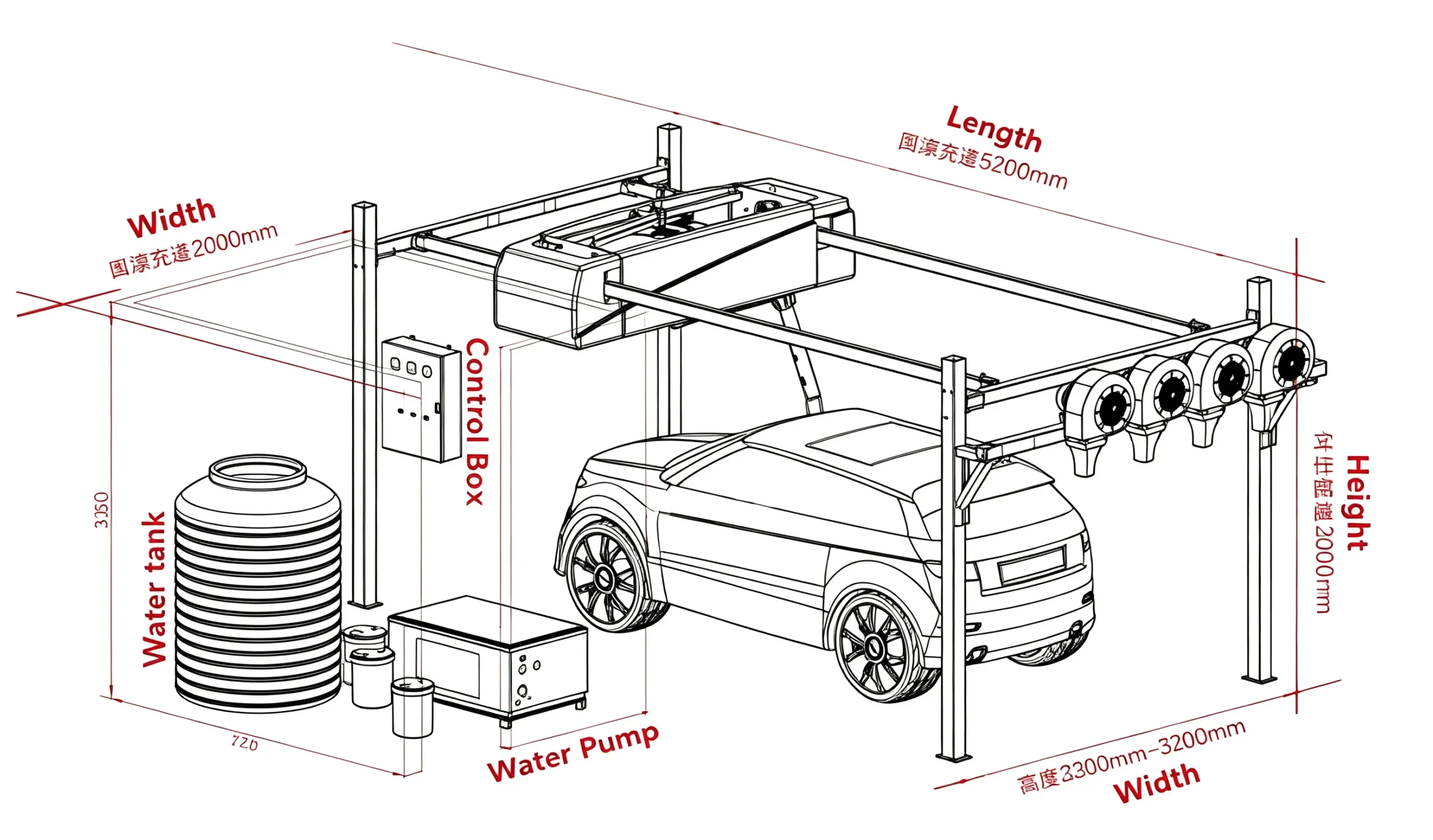

最小安装尺寸（长×宽×高） Minimum installation dimensions (L× W× H) |
7000 mm ×3300 mm ×3300 mm | 7000 mm ×3300 mm ×3300 mm | 7000 mm ×3300 mm ×3300 mm |
| 可清洗车辆最大尺寸（长 × 宽 × 高） Maximum Washable Vehicle Size (L× W× H) | 5500 mm ×2000 mm ×2000 mm | 5500 mm ×2000 mm ×2000 mm |
5500 mm ×2000 mm ×2000 mm |
| 电源要求 Power Requirements | 380V/22Kw/50Hz（60Hz） | 380V/40Kw/50Hz（60Hz） | 380V/55Kw/50Hz（60Hz） |
|
整机质量/体积 Overall Mass / Volume |
1800kg/10m³ | 2100kg/10m³ | 2200kg/12m³ |
|
三相电/整机功率 Three-phase electricity / Total machine power |
380V/18Kw | 380V/38Kw |
380V/50Kw |
| 安装费用 Installation Cost | 免费Free | 免费Free |
免费Free |
