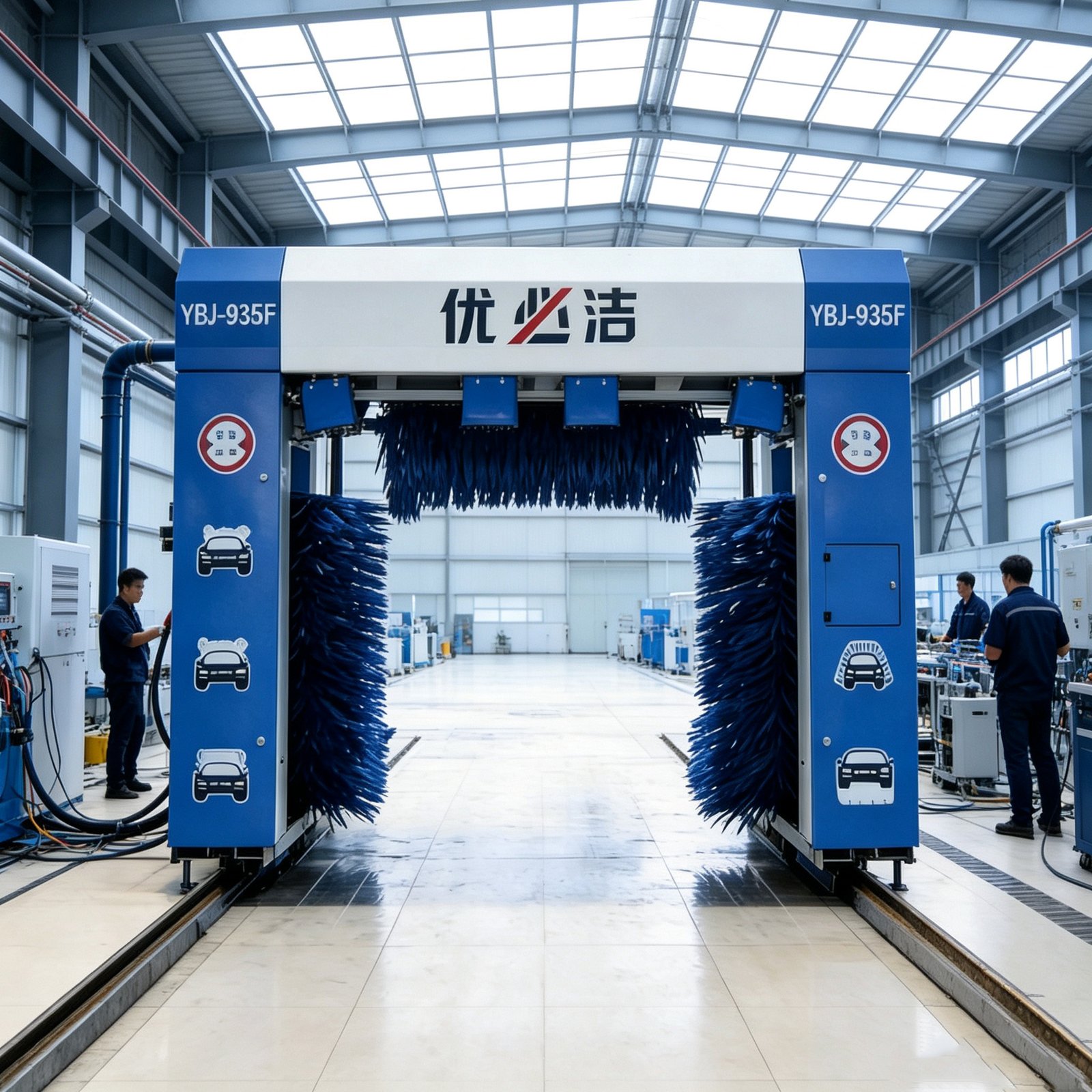

YBJ-935F

原价为：¥19,800.00。当前价格为：¥17,400.00。

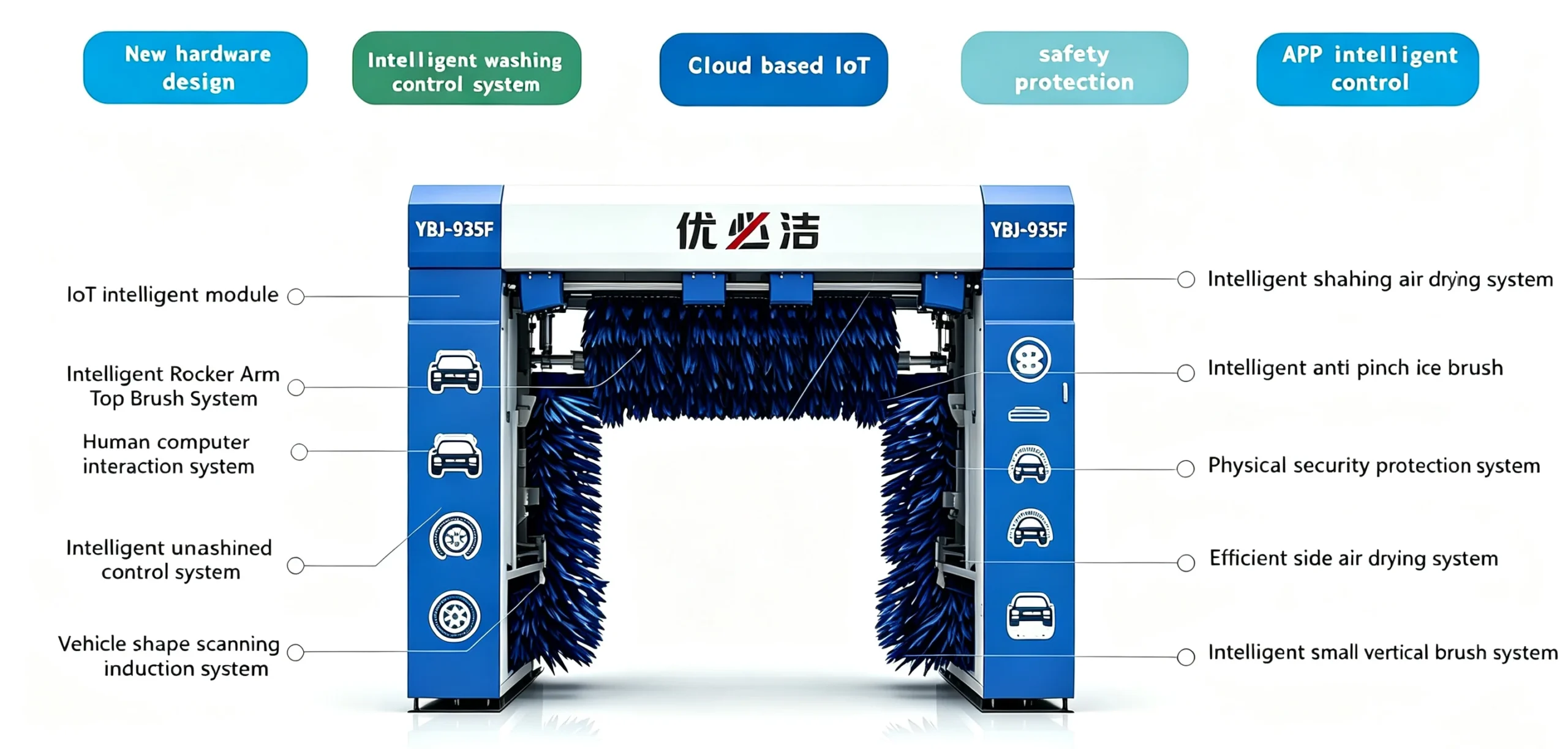

Description of Car Wash Machine Specifications and Features

project	Configuration	illustrate
CPU module	DVP40ES200R	Delta Controller
Human-Machine Interface (Touchscreen)	MCGS	MCGS Operating System
Frame structure	Double C-shaped box-type structure	Rust protection via pickling, phosphating, and hot-dip galvanizing, followed by a powder-coated surface finish.
High-pressure water system	3 sets of spray nozzle	Effectively washes away mud, sand, and loose dust from the vehicle’s surface.
Pull-type transverse brush	Variable-frequency controlled brake motor	Precisely controlled balancing structure; automatic detection of scrubbing pressure.
Large upright brush	Parallel-type large vertical brush	Precise control of the left and right vertical brush angles. Covers the rear section and tail of the vehicle; safe washing with no blind spots.
Skirt brush	Tilted structure	Dense bristles for a more thorough wash of the vehicle’s side skirts.
Data system	Touchscreen display	Detailed statistics on the number of cars washed that day and the total number of cars washed.
Fault self-diagnosis system	Touchscreen display	Full Chinese-language self-diagnosis and alarm notifications, along with fault analysis and troubleshooting guidance.

SKU： 211855 分类： car washing machine, Product

Configuration	YBJ-935	YBJ-935F
Equipment dimensions (L x W x H) mm	2200×3600×3000 mm	2200×3600×3000 mm
Washable vehicle dimensions (mm)	5000×2000×2000 mm	5000×2000×2000 mm
Mounting dimensions (mm)	10000×4000×3100 mm	10000×4000×3100 mm
Power supply	Three-phase four-wire: 220V–480V / 50Hz (60Hz)	Three-phase four-wire: 220V–480V / 50Hz (60Hz)
Air supply pressure	Approx. 6–8 kPa	Approx. 6–8 kPa
Water consumption	Approx. 200 kg/unit	Approx. 200 kg/unit
Car washing capability	Approx. 20 units/hour	Approx. 20 units/hour
Rated power	5 kW	27 kW
Top brush	Group 1	Group 1
Side brush	Two groups	Two groups
Skirt brush	Two groups	Two groups
Contour-following air-drying system	Configuration not available（/）	Standard equipment（φ）
Stationary air-drying system	Configuration not available（/）	Standard equipment（φ）
Bottom-spray system	Optional（○）	Optional（○）
Foam system	Standard equipment（φ）	Standard equipment（φ）
High-gloss wax system	Configuration not available（/）	Standard equipment（φ）
Unattended system	Optional（○ (Can interface with gas station systems.)）	Optional（○ (Can interface with gas station systems.)）
○ Optional φ Standard equipment /Configuration not available △Optional configuration for liquid supply via metering pump
